Max. operation flow rate SCFM(Nℓ/min)

200

500

1,500

Max. pressure drop (PSIG) (Mpa) {Kgf/㎠}

0～0.025 {0.0～0.25}

Operating pressure range (Mpa) {Kgf/㎠}

0.01～1.0
{1.0～10.2}

0.01～1.5 {1.0～15.3}

Max pressure before failure (Mpa) {Kgf/㎠}

1.2 {12.1}

2.0 {20.4}

Fluid temperature (°C)

-20～60

Type of drain valve

Automatic(can be drained manually)

Air line connection diameter(〃)

PT-1/4

PT-1/4

PT-1/2

Drain outlet connection diameter (Rc)

1/4 (Ø6.35mm) One touch nipple Type

Weight (kg)

0.40

0.75

1.10

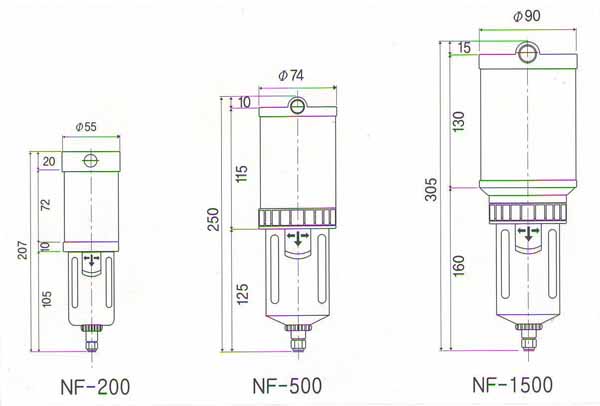

External Dimensions (mm)

Ø55×207

Ø74×250

Ø90×305
