Tool cooler
Produce cold air from compressed air to cool machine tools and other applications to replace messy misting systems,


Tool Cooler Features
System uses strong magnetic base
Small and lightweight - portable
Driven by air not electricity.
Constructed of stainless steel
valve made of brass and sealed with viton o-rings
Generators are interchangeable

도면을 클릭하면 큰이미지를 보실수 있습니다.
Adjustable Spot Cooler System comes with three brass generators for flow rate adjustment - 15 SCFM (425 SLPM), 25 SCFM (708 SLPM) and 30 SCFM (850 SLPM) providing refrigeration up to 2100 BTU/hr (615 Watts)

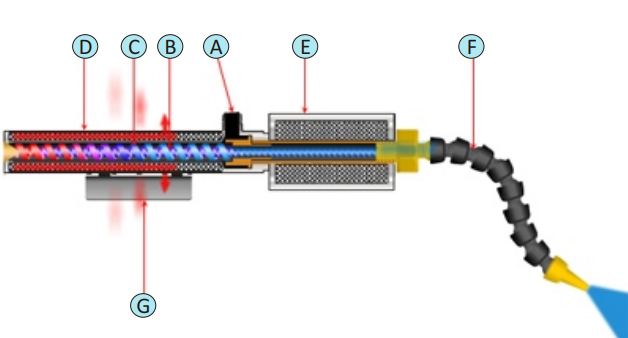

Tool Cooler – HOW TO WORKS

Compressed air enters at point (A) into the vortex tube component of the tool cooling. The vortex tube splits the compressed air into a cold (B) and hot (C) stream of air. The hot air from the vortex tube is vented to the atmosphere at point (D) after being muffled to reduce noise. Cold air enters into the muffler (E) and then distributed through the hose distribution kit (F) and onto the tool being cooled. A strong magnet (G) holds the tool cooler onto the machine


Application
