Hyper Clean Series “Non-Contact Surface Cleaning System” are particularly suitable for cleaning profiled components and structured surface.
The rotating nozzles generate a pulsing, highly turbulent air flow and remove dust and material.
Hyper Clean Characteristics
◈ A pulsing, highly turbulent Air flow from Multi-Rotating Nozzle
◈ Integrated and Enclosed type suction
◈ Compact design, simple, lightweight and portable
◈ Easy to mount and maintenance
◈ Driven by air not electricity
◈ Constant nozzle RPM vs compressed air pressures from 0.6 bar~3.5 bar and Uniform suction along the entire length of the Hyper Clean

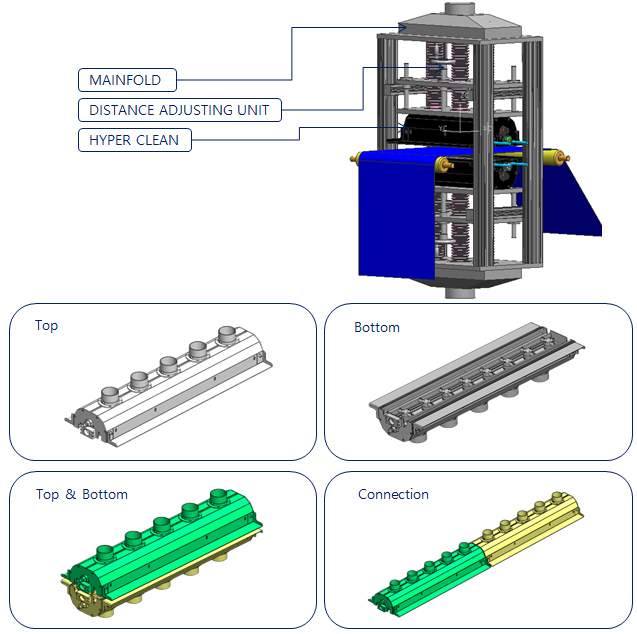

◈ Connect two(2) Hyper Cleans to cover a longer distance

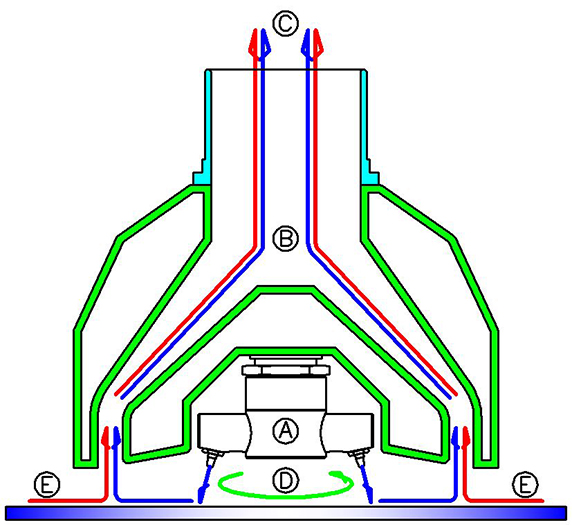

How it works
Compressed air flows through an inlet (A) into the plenum chamber of the multi-channel rotating nozzles(A), all rotating nozzles are designed with speed stabilization, The high-speed multi-channel rotating nozzles(A) generate a pulsing, highly turbulent air flow(D) and remove dust and material particles from the surface, the dust-charged outlet air is collected in the internal suction channel(B) together with the induced air(E), And from there removed by an external filter unit CE-NA Series(C)

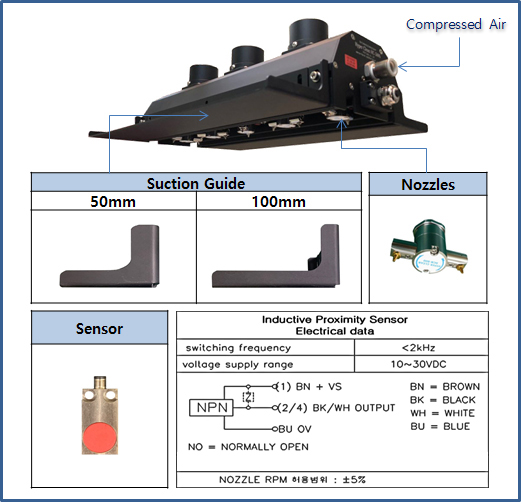

Product Overview
