Powerful and quiet static eliminator rapidly dissipates static charge and removes dust with Standard Air Blade.
Standard Air Blade Ionizer의 Features
Standard Air Blade uses a small amount of compressed air for a powerful, and adjustable force with “laminar” flow to eliminate charges in applications where static bars cannot reach or where high speeds are a factor, and to clean the surface.

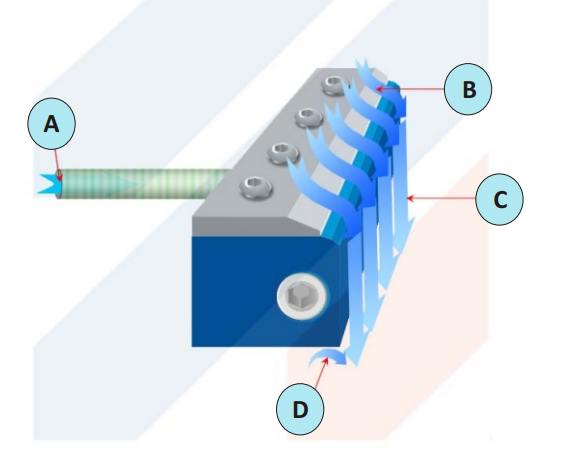

Standard Air Blade Ionizer HOW IT WORKS
Compressed air flows through an inlet (A) into the plenum chamber of the Standard Air Blade Ionizer.
The flow is directed to a precise, slotted orifice. As the primary airflow exits,
it creates a uniform sheet of air across the entire length that immediately pulls in
surrounding room air (B). An electrically powered ionizing bar (C) fills the curtain of air
with positive and negative charges. The airstream delivers these static eliminating ions
to the product surface (D) where it is instantly neutralized and cleaned of dust and other
particulates.
Standard Air Blade Ionizer
Effective Length
Model Number
Material of Construction
3”
15003
Aluminum
6”
15006
Aluminum
12”
15012
Aluminum
18”
15018
Aluminum
24”
15024
Aluminum
30”
15030
Aluminum
36”
15036
Aluminum
Dimensions
Model
Effective Length
"A"
"OA"
15003
3" (76mm)
44mm
125mm
15006
6" (150mm)
90mm
200mm
15012
8" (203mm)
143mm
254mm
15018
12" (305mm)
250mm
351mm
15024
18" (457mm)
390mm
508mm
15030
24" (610mm)
543mm
661mm
15036
36" (914mm)
844mm
965mm
Power Supplies
Voltage
Model Number
Description
110V
ENC-110/2
Two outlet (Can connect two static bars)
220V
ENC-220/2
Two outlet (Can connect two static bars)
110V
ENC-110/4
Four outlet (Can connect four static bars)
220V
ENC-220/4
Four outlet (Can connect four static bars)
110V
Multistat 110
Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.)
220V
Multistat 220
Four outlet (Can connect four static bars plus monitors performance. Can be connected into a system alarm or indicating light.)
