Cabinet Panel Cooler series provide a low cost method of both purging and cooling electrical and electronic control panels by using a stainless steel vortex tube to create cold air from ordinary compressed air. Utilizing a hot and cold end muffling kit the unit is made extra quite to under 64 dBA

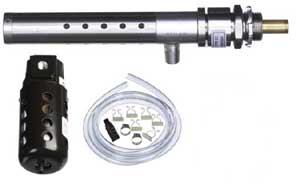

Continuous cooling system with cooler, filter with auto drain and hose distribute Kit.

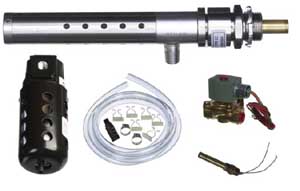

ON-OFF PANEL COOLING SYSTEM with cooler, filter with auto drain and hose distribution kit, thermostat and solenoid valve
Cabinrt Panel Coolers are available with thermostat control (on-off units) or continuous operation. Continuous systems are best when constant cooling and/or a positive
purge of the panel is required. On-off control saves air by activating the unit when the internal temperature approaches a critical level. The adjustable thermostat is factory set at
95 degrees F (35 degrees C).
Cabinet Panel Cooler Benefits
Small and lightweight - portable Driven by air not electricity. Constructed of stainless steel valve made of brass and sealed with viton o-rings Generators are interchangeable
Cabinet Panel Cooler - HOW TO WORKS

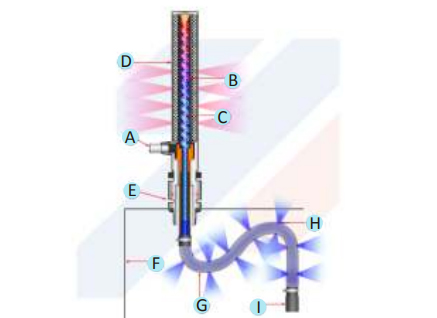

Compressed air enters at point (A) into the vortex tube component of the panel cooler. The vortex tube splits the compressed air into a hot (B) and cold (C) stream of air. The hot air from the vortex tube is vented to the atmosphere at point (D) after being muffled to reduce noise. Hot air displaced from inside the control panel or cabinet is exhausted through point (E). Cold air enters into the panel (F) via the cold distribution hose (G). Holes (H) are punched into the hose kit to deliver the cold air inside the panel where required. A muffler (I) further reduces the noise level of the exhausting air
Cabinet Panel Cooler
Small and lightweight - portable
Driven by air not electricity.
Constructed of stainless steel
valve made of brass and sealed with viton o-rings
Generators are interchangeable
